The world is rapidly transitioning to renewable energy sources, with solar power being the most popular option. Off-grid solar power systems have increased in popularity as a means to achieve energy independence and cut down on carbon emissions.
The potential of solar power for self-sufficiency in energy production is unrivaled. The sun is a limitless and free energy source because its rays reach every corner of the Earth. Off-grid solar systems are now more accessible and cost-effective than ever before thanks to developments in solar technology and falling prices.
Not to mention, switching to limitless renewable sources of energy like solar energy help the fight against climate change. Individuals and communities can help create a sustainable future by cutting back on fossil fuel use and GHG emissions, and also increase energy equity and democratize access to electricity in the process.

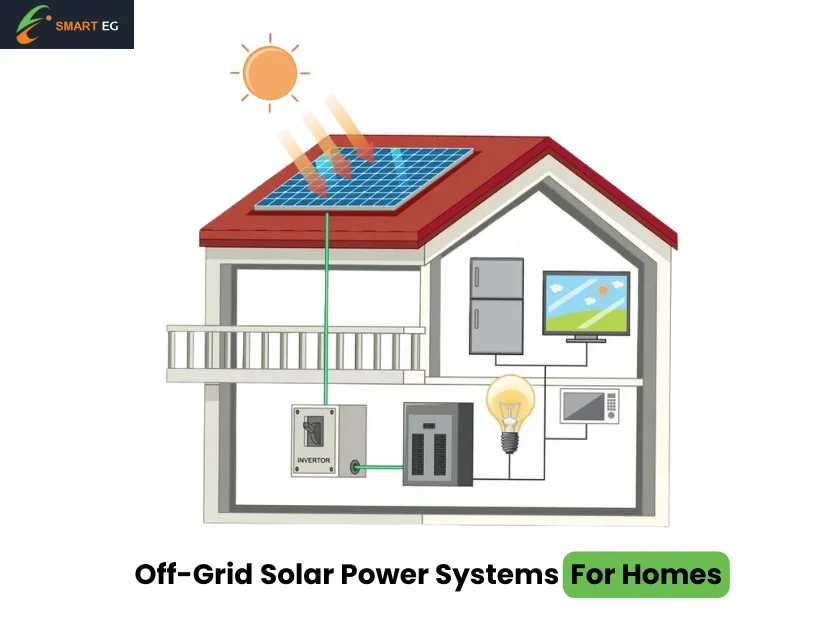

What Are off-grid solar systems?
Simply put, off-grid solar systems are the ones where homeowners put up a large number of solar panels on their rooftops to extract electrical energy directly from the sunlight, and cut themselves off from the expensive national utility grid for good.
These systems have become very popular among people who either want energy independence, or those who live in remote areas and lack reliable access to the utility grid, or both.
However, setting up an off-grid solar system is not as simple as decorating your rooftop with solar panels and saying goodbye to the national grid. It is a complicated process that requires an understanding of the components and functionality of various systems critical for such a setup.
These include:
a) Solar Panels: Also known as photovoltaic (PV) panels, these are the engines that drive your solar energy system. Using the photovoltaic effect, they transform sunlight into DC electricity. Most solar panels contain a number of solar cells wired in series or parallel to produce the required voltage and current.
b) Charge Controllers: Battery charging in an off-grid solar system is controlled by a charge controller. They safeguard the batteries from being overcharged. Maximum Power Point Tracking (MPPT) controllers are more efficient at capturing and converting solar energy, and both Pulse Width Modulation (PWM) and MPPT are used in charge controllers.
c) Batteries: Batteries store any excess electricity produced by the solar panels for use at a later time, especially when there is little to no sunlight. Off-grid solar systems typically make use of deep-cycle batteries, such as lead-acid or lithium-ion batteries, because of their resilience to repeated charging and discharging.
d) Inverters: Inverters convert the direct current (DC) power stored in batteries from solar panels into the alternating current (AC) power typically used in homes and appliances. Inverters ensure that solar energy is compatible with home electrical systems, allowing for its immediate use.
Assessing Energy Needs and Sizing Your Solar System
Before deciding to go off-grid with solar power, it is important to accurately assess your energy needs. This will involve evaluating various factors such as peak load requirements (highest probable energy consumption you might experience), energy efficiency, and flexibility that allows for future growth if desired.
In order to calculate average daily electric consumption, simply grab some old electric bills who show your monthly consumption in kWh (kilowatt per hour). Calculate the average of multiple months to have a more accurate idea of average consumption. Now, divide that monthly average by 30 (days in a month) to determine how much energy you consume on a daily basis.
Confused? Try this: let’s say your monthly average is 60 kWh. Dividing that by 30, your average daily consumption will be 2 kWh. Don’t forget to adjust for seasonal changes though, as they allow you to be ready for increased power requirements.
After getting an educated idea of your energy needs, you can prepare a solar system that is capable of meeting those needs, as well as some additional power requirements that might arise in the future. For example, if you consume around 4 kWh of power every day, then it would be wise to have a solar system that can provide 5 kWh of electricity every day.
It all may sound like a tedious process (which it is), but it’ll pay dividends later on by helping you design a well-optimized solar system which avoids oversizing or undersizing, is financially viable and is tailored to your energy needs.
Choosing Solar Equipment
Solar components you choose decide the effectiveness, longevity, and reliability of your off-grid solar system. There are a number of factors that should be taken into account when deciding on solar panels, batteries, charge controllers, and inverters. Let’s take a look at the most important factors for each part:
1. Solar Panels
When shopping for solar panels, look for solar units with greater efficiency (to maximize electricity generation), durability (to ensure reliability over time), temperature coefficient (to ensure optimal performance in hot climates), and length of warranty (to demonstrate quality and manufacturer confidence).
2. Batteries
Batteries decide how much energy you can store for a rainy (or grainy) day. Numerous factors need to be taken into account when choosing batteries for an off-grid solar system. Determine your needs for energy storage while taking into account voltage compatibility with other components and the storage capacity.
Generally speaking, lead-acid batteries are better suited to smaller systems with lower energy demands, while lithium-ion batteries are all the rage these days due to their higher energy density and longer lifespan.
Long-term performance is guaranteed by batteries with a higher life cycle, and batteries with a higher depth of discharge (DoD) offer more usable energy storage. Aside from that, maintenance obligations like lead-acid battery water refilling or electrolyte checks should also be considered.
3. Charge Controllers
Charge controllers usually escape the attention of people building and off grid solar system, but these very useful components are absolutely necessary for controlling battery charging, and ensuring that your battery is not damaged due to overcharging. Pay attention to the following elements when choosing a charge controller:
- Decide whether to use a controller that uses maximum power point tracking (MPPT) or pulse width modulation (PWM). The efficiency of MPPT controllers is higher, especially for larger solar panel arrays.
- Verify that the charge controller’s voltage rating corresponds to the voltage of your solar panels and battery bank.
- Some charge controllers have the ability to control loads, letting you use the solar system’s power to run DC loads without depleting the battery.
- Seek out charge controllers with temperature compensation features, as these enhance battery life and performance by adjusting the charging voltage in response to temperature.
4. Inverters
The appliances in your home need AC power to operate, and inverters do just that by converting the DC current received from the solar panels into AC current. There are several things to take into consideration when choosing inverters for solar panel systems.
First off, make the choice whether you want to have a pure sine wave or a modified sine wave inverter. Although the pure sine wave inverters are mostly preferred due to their consistent AC power output, which is very helpful for home appliances.
The power rating of the inverter should then be determined to match your peak load requirements. Make sure the inverter has enough surge capacity for appliances that require a lot of power during startup. To reduce power losses, choose inverters with high efficiency.
If you want to keep an eye on your solar system’s performance and want to detect potential issues before they occur (both very good ideas), then you need to invest in an inverter with monitoring and communication capabilities.
Prioritize quality, efficiency, durability, and warranties when choosing solar equipment. To make sure you select dependable parts that will maximize the performance and longevity of your off-grid solar system, do your research on reputable manufacturers and speak with solar experts. Your solar journey will be more successful and fulfilling over the long term if you make an upfront investment in high-quality equipment.
Installing Solar Panels
Once you have rounded up all the equipment, you are faced with the not-so-easy process of actually installing that solar system in your home. While it is definitely not recommended to go by this process yourselves unless you are well-acquainted with electronics and solar installation, here is a basic roundup of what you’d need to do:
- Choose the best location for the panels on your property, and then adjust the tilt angle for the best sunlight exposure while taking shading into account.
- Pick a system that is suitable for the type of roof you have, follow the manufacturer’s instructions, and make sure it is attached securely using the right hardware and roof penetrations.
- Determine the wiring configuration, use the appropriate cables and connectors, and shield the wiring from weather and damage to properly connect the solar panels.
- Follow your local electrical codes, install disconnect switches, and seek the advice of a licensed electrician to ensure compliance and safety when it comes to grounding.
- Conduct system testing and commissioning, including functional testing, monitoring setup, and routine maintenance.
Again, installing solar systems on your home is not a common person’s cup of tea, and you will definitely need the help of trained professionals to do that for you. Even the smallest of errors and oversights can later on result in catastrophic system failures which can result in severe damage to your appliances, or even breakout of electrical fires.
In order to avoid those mishaps, enlist the help of professionals who know how to do that.
Ensuring System Efficiency
Let’s say you have installed a solar system with a 5 kWh capacity, but you notice after a while that you are not getting the full 5 kWh from the system. There is a very simple reason for that: your solar system’s efficiency has decreased over time due to a variety of factors, and you need to address those issues in order to get the best bang for your buck.
Start by improving insulation, fixing air leaks, using energy monitoring systems and exercising routine maintenance to provide ideal operating conditions for your solar system.
Practice water conservation, take advantage of natural ventilation, and use energy-efficient appliances (those with an Energy Star rating or LED lighting) to take some load off of the system and give it some much-needed breathing space.
You can increase the effectiveness of your off-grid solar system by utilizing load balancing, intelligent battery management and smart energy management.
For long-term sustainability, keep in mind to assess and modify your energy usage strategies based on your location, the weather, and your energy consumption patterns.
Seeking Professional Assistance
There are many factors to consider when determining the optimal size for an off-grid solar system. If you want an accurate assessment of your needs, a thorough solar potential analysis, and recommendations for sizing, you should get in touch with solar experts or installers. Their knowledge and skill will help your system run at peak efficiency, satisfying both your immediate and long-term energy needs.
With input from solar experts, tou can design a dependable and efficient off-grid solar system by accurately sizing your system based on your energy needs and solar potential, taking into account seasonal variations and future growth.
If you put in the time and effort now, you’ll have a system that runs smoothly, gives you the freedom from external energy sources you want, and requires fewer adjustments down the road.
Advantages of Off-Grid Solar Systems
- Energy Independence: Off-grid solar systems provide autonomy and self-sufficiency by generating electricity on-site, reducing dependence on the power grid.
- Remote Accessibility: Off-grid solar systems are ideal for remote locations where connecting to the grid may be prohibitively expensive or technically challenging.
- Resilience: Off-grid systems offer resilience in the face of power outages or disruptions, ensuring a continuous power supply for critical needs.
- Environmental Benefits: By relying on clean solar energy, off-grid systems contribute to reducing greenhouse gas emissions and combatting climate change.
- Cost Savings: Over time, off-grid solar systems can lead to significant cost savings by eliminating or reducing monthly electricity bills.
Limitations of Off-Grid Solar Systems
- Upfront Costs: The initial investment in equipment needed to set up an off-grid solar system can be higher than that required for a grid-tied system. Off-grid systems were previously prohibitively expensive, but falling prices for solar panels and batteries have made them slightly more affordable in recent times.
- System Sizing and Maintenance: Reliable operation of off-grid systems is dependent on accurate system sizing and regular maintenance. When deciding on a system size, it is important to think about energy requirements, storage space, and expected weather. Whereas regular battery monitoring and panel cleaning should be part of a regular maintenance schedule.
- Limited Power Supply: Power from off-grid solar systems is limited because they are dependent on the sun, which can change depending on the time of year and the weather. It may be necessary to use backup generators or other alternative energy sources during prolonged periods of low sunlight.
Conclusion
To achieve energy independence and lower carbon emissions, the world is shifting to solar power. Off grid solar systems have become the go-to option for people sick of electricity bills, harming the environment, or both.
Installing off grid solar systems requires proper knowledge of components, energy requirements, and system sizing. People who are overwhelmed by the technical expertise required for this endeavor would be better off letting the trained professionals do it for them.
FAQs
1. Can I run off-grid with solar panels?
While you can live off-grid with solar panels on most normal days, problems will arise on not-so-normal days such as during rain, fog, or snow when the sun does not show up. For those days, you would definitely need the help of the national grid, or invest in very expensive batteries who store excess energy exactly for days like those.
